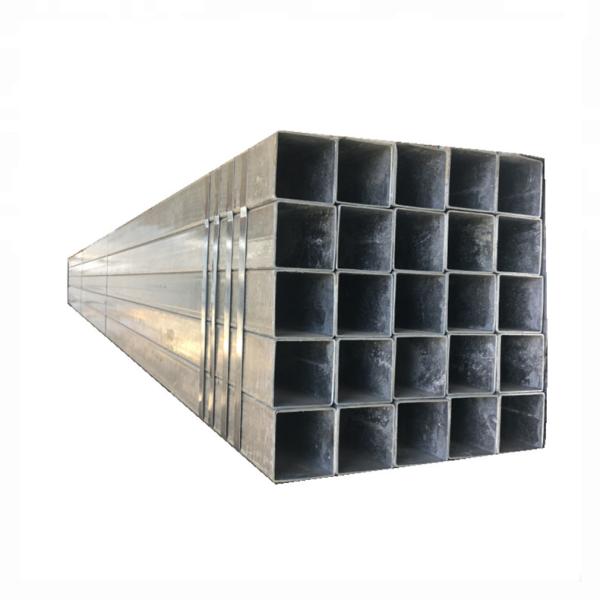

Hot Dipped Gi Steel Pipe Welded Tube Galvanized Square Pipe For Construction

Ask Lasest Price
Brand Name :	NADONG
Model Number :	316
Certification :	ISG SGS
Price :	$450-$800
Payment Terms :	L/C, T/T
Supply Ability :	1000 ton per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Hot Dipped Gi Steel Pipe Welded Tube Galvanized Square Pipe For Construction

Hot dipped gi steel pipe welded tube galvanized square pipe for construction

The hot-dip galvanized pipe is to make the molten metal and the iron matrix react to produce an alloy layer, so that the matrix and the coating are combined. Hot-dip galvanizing is to pickle the steel pipe first. In order to remove the iron oxide on the surface of the steel pipe, after the pickling, it is cleaned in a tank of ammonium chloride or zinc chloride aqueous solution or a mixed aqueous solution of ammonium chloride and zinc chloride, and then sent to In the hot dip plating tank.

Product Name	Hot Dip Galvanized Steel Pipe / GI Galvanized Tube For Construction
Grade	10#-45#, 16Mn, A53-A369, Q195-Q345, ST35-ST52
Standard	GB/T3091-2001 , BS 1387-1985 , DIN EN10025 , EN10219 , JIS G3444:2004 , ASTM A53 SCH40/80/STD , BS- EN10255-2004
Shape	Round/Square/Rectangle
Length	5m-14m,5.8m,6m,10m-12m,12m or as customer's actual reques
Surface Treatment	1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement
Package	In Bulk, in Bunddle, in Water Proof Plastic Wrapped or Customized
Application	Construction, Automobile,Bridge,Transportation,Agriculture, etc.
We Can Provide Free Samples,More Details PLS Contact Us!

Chemical Composition

Specification	Grade	Chemical Composition(wt%)
Specification	Grade	C	Mn	Ni	Cr	Mo	Ti
ASTMJIS	316L/022Cr17Ni12Mo2	≤0.03	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	-
JIS	SUS316L	≤0.03	≤2.0	12.0-15.0	16.0-18.0	2.0-3.0	-
ASTMJIS	316Ti/SUS 316Ti	≤0.08	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	5*(C+N)-0.7

Properties

Spec	Grade	Mechanical Property				Physical Property
Spec	Grade	Y.S (N/MM2)	T.S (N/MM2)	EL (%)	HRB	Specific Heat (J/g℃)	Modulus of Elasticity (KN/mm2)
ASTM/GB	316L/022Cr17Ni12Mo2	≥170	≥485	≥40	≤95	0.5	193
JIS	SUS316L	≥175	≥480	≥40	≤90	0.5	193
ASTM	316Ti	≥205	≥515	≥40	≤95	0.5	200

Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.

316Ti: Mainly used for industrial components.
