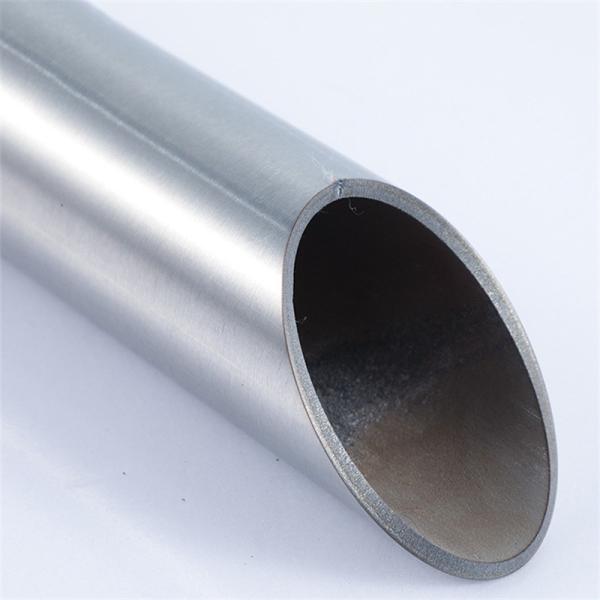

Round Cold Drawn SS316l Stainless Steel Seamless Pipe 12m

Ask Lasest Price
Brand Name :	NADONG
Model Number :	316
Certification :	ISO
Price :	$1000-$2200
Payment Terms :	L/C, T/T
Supply Ability :	1000 ton per month
Delivery Time :	15 working days

Add to Cart

Product Details
Company Profile

Round Cold Drawn SS316l Stainless Steel Seamless Pipe 12m

Manufacturer 316 Welded Polished Square Stainless Steel Welded Tube

310s is austenitic chromium-nickel stainless steel with good oxidation resistance and corrosion resistance. Because of the higher percentage of chromium and nickel, 310s has good multi-creep strength, can work continuously at high temperatures, and has good high temperature resistance sex.

Specfications

product name	Stainless steel pipe
Grade	201.202.301.302.304.304L.309S.310S.316.316L.321.410.430.430A.440A.440B.440C.904L.2205.2507.2520 ect. Or Customized
Standard	GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Surface	Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish (HL/Brushed),Ti-gold, Glossy matt,dull and so on.
specifications	Outer diameter	6mm-630mm or customized
	Wall thickness	0.1-30mm or customized
	Length	0.3-15.8m or customized
Technique	Cold rolled	welding or customized
	Hot rolled	seamless
Test and Inspection	Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT
Thickness tolerance	±0.05mm

Chemical Composition

Specification	Grade	Chemical Composition(wt%)
Specification	Grade	C	Mn	Ni	Cr	Mo	Ti
ASTMJIS	316L/022Cr17Ni12Mo2	≤0.03	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	-
JIS	SUS316L	≤0.03	≤2.0	12.0-15.0	16.0-18.0	2.0-3.0	-
ASTMJIS	316Ti/SUS 316Ti	≤0.08	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	5*(C+N)-0.7

Properties

Spec	Grade	Mechanical Property				Physical Property
Spec	Grade	Y.S (N/MM2)	T.S (N/MM2)	EL (%)	HRB	Specific Heat (J/g℃)	Modulus of Elasticity (KN/mm2)
ASTM/GB	316L/022Cr17Ni12Mo2	≥170	≥485	≥40	≤95	0.5	193
JIS	SUS316L	≥175	≥480	≥40	≤90	0.5	193
ASTM	316Ti	≥205	≥515	≥40	≤95	0.5	200

Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.

316Ti: Mainly used for industrial components.
