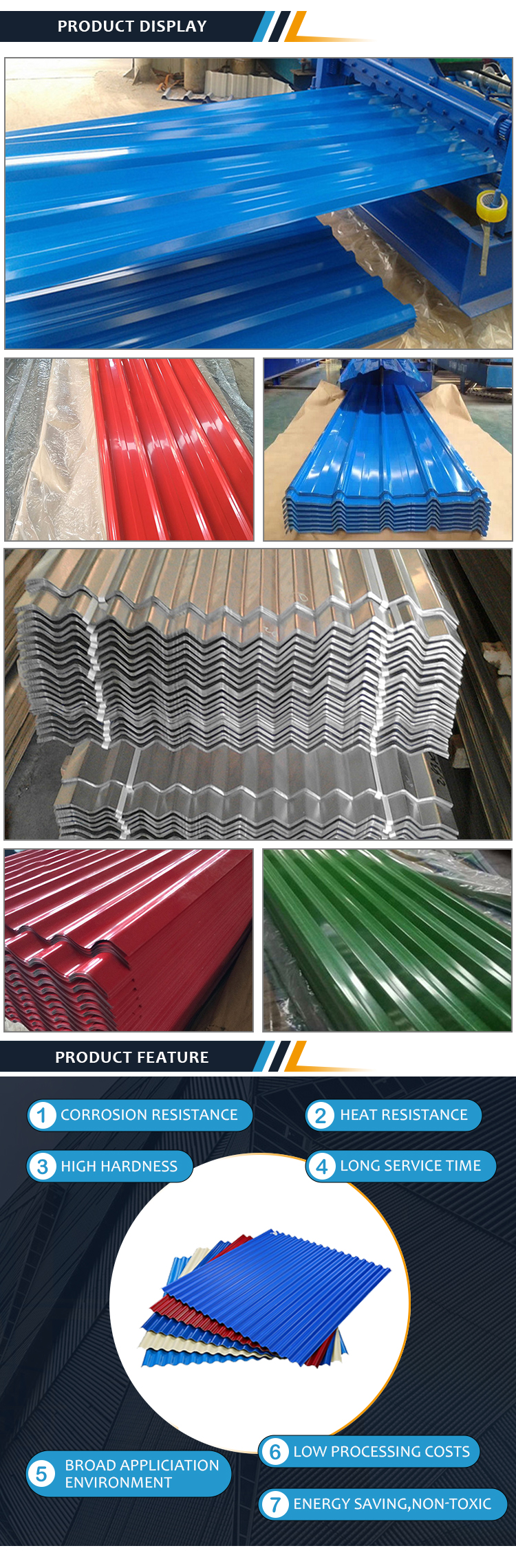

PPGI Roof Sheet Prepainted Galvanized Steel Coil Color Blue / Red / Green

PPGI Roof Sheet Prepainted Galvanized Steel Coil Color Blue / Red / Green

Coated plate is also called organic coated plate or pre-coated steel plate, it is a metal coil (cold rolled plate, hot galvanized plate, aluminum plate, high aluminum alloy plate, stainless steel plate, etc.) as the base material, coated or laminated on the surface of a variety of organic coatings or plastic film. Because it is finished in the metallurgical plant surface coating coil, can be directly processed into products by users, so it is also called pre-coated coil.

Prepainted Steel sheets is made generally by coating(roll coating) a layer of coat on the substrate or boning organic film and baking then. The prepainted steel sheets can be processed further into finished products. It is called also as “pre-coated steel plate” and “plastic steel plate”. The product is colorful or covered by beautiful patterns when delivery, so it is also called as “color coated steel plate”. In our country, the more popular name is color coated plate, or called simply as “color coated plate0” or “color plate”.

Specfication

Contents	PREPAINTED GALVANIZED – PPGI	PREPAINTED GALVALUME – PPGL
BASE METAL	GALVANIZED	GALVALUME / ALUZINC
STANDARDS	JIS G 3312-CGCC, CGC340-570, (G550), ASTM A -755M CS-B, SS255-SS550	JIS G 3312-CGLCC, CGLC340-570, (G550), ASTM A -755M CS-B, SS255-SS550
THICKNESS	0.14~2.0 mm	0.14~2.0 mm
Width	750~1500 mm	750~1500 mm
Cut to length	200mm-5000mm	200mm-5000mm
Coil ID	508/610 mm	508/610 mm
Substrate	Soft, Medium, Hard	Soft, Medium, Hard
Coating Mass	Z 40-275 (g/m2)	AZ 40-150 (g/m2)
Paint Systems	Primers: Epoxy, PU Top Coating: Polyester (RMP/PE) Silicon Modified Polyester (SMP) Poly Vinyl Di Flouride (PVDF) Back Coating: Epoxy, Polyester, PU	Primers: Epoxy, PU Top Coating: Polyester (RMP/PE) Silicon Modified Polyester (SMP) Poly Vinyl Di Flouride (PVDF) Back Coating: Epoxy, Polyester, PU
Coating	20 – 50 Microns	20 – 50 Microns
Colours	As Per RAL Chart/Customer requirements.	As Per RAL Chart/Customer requirements.
Surface Finishes	Glossy and Matte	Glossy and Matte

Chemical Composition

Specification	Grade	Chemical Composition(wt%)
Specification	Grade	C	Mn	Ni	Cr	Mo	Ti
ASTMJIS	316L/022Cr17Ni12Mo2	≤0.03	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	-
JIS	SUS316L	≤0.03	≤2.0	12.0-15.0	16.0-18.0	2.0-3.0	-
ASTMJIS	316Ti/SUS 316Ti	≤0.08	≤2.0	10.0-14.0	16.0-18.0	2.0-3.0	5*(C+N)-0.7

Properties

Spec	Grade	Mechanical Property				Physical Property
Spec	Grade	Y.S (N/MM2)	T.S (N/MM2)	EL (%)	HRB	Specific Heat (J/g℃)	Modulus of Elasticity (KN/mm2)
ASTM/GB	316L/022Cr17Ni12Mo2	≥170	≥485	≥40	≤95	0.5	193
JIS	SUS316L	≥175	≥480	≥40	≤90	0.5	193
ASTM	316Ti	≥205	≥515	≥40	≤95	0.5	200

Applications:

316L: Widely used in corrosion-susceptible environment and some mechanical components those are difficult to make heat treatment after forming in more corrosive environment.

316Ti: Mainly used for industrial components.
